Fire Protection Valves

Features 900X Fire Protection Valves is used in the living and fire-fighting emergent water supply system. It supplies living water in the normal conditions. And in case of a fire, close automatically the living water and open the fire-fighting one to make it enough, and when the fire-fighting water stops and the pressure is reduced, resets the living water automatically. Thus making the system no need to set a separate fire-fighting water supply pipeline, this saves both engineering construction cost and daily water quantity used greatly. It features by the sensitive control, safety, reliability, simple debugging and long duration. This is a kind of valve used to balance the differential pressure in air conditioner system. This kind of valve improves the systems using percentage and maintaining precise and stable differential pressure and at most degree low eliminate noise in the system and damage to the system due to over pressure differential. This valves most advantage is that its without actuator, compared to with other balance valve, and it can balance the system by mediums own differential pressure and thus saves energy and installation space.

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

Technical Parameters

Nominal Pressure: 1.0, 1.6, 2.5MPa
Shell test pressure: 1.5, 2.4, 3.75MPa
Sealed test pressure : 1.1, 1.76, 2.75MPa
Suitable temperature: 80
Suitable medium: water, Sewage

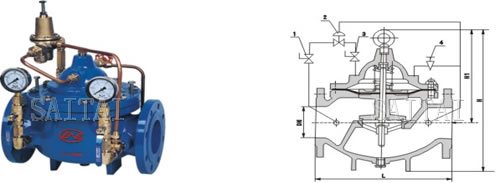

Materials

No.	Part	Material
1	Plug	Alloy Bronze
2	Body	Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
3	Seat	2Cr13 / SS 304 / SS 316
4	Stem	2Cr13 / SS 304 / SS 316
5	O-Ring Retainer	Cast Iron
6	O-Ring Retainer	NBR
7	O-Ring	NBR
8	Disc	Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
9	Diaphragm	Rubber
10	Diaphragm Retainer	Cast Iron
11	Nut	Alloy Bronze
12	Spring	Stainless steel
13	Cover	Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
14	Ball Valve	Alloy Bronze
15	Ball Valve	Alloy Bronze
16	Pressure Guage
17	Pilot Valve	Alloy Bronze
18	Ring	Bronze
19	Pilot socket	Alloy Bronze
20	Needle Valve	Alloy Bronze
21	Ball Valve	Alloy Bronze
22	Pressure Guage
23	Stud	Steel
24	Nut	Steel
25	Pipeline	Alloy Bronze
