Cryogenic Globe Valve, Forged steel, Class 800Lb

Features
Y Globe Valve (forged steel 45° inclined globe valves)
Remy's cryogenic globe valve is a cost-effective, low heat leak, cryogenic valve that exceeds the industry's standards for reliability and performance. Globe configuration design is easy to retrofit while decreasing heat leak. Remy's valve design makes an outstanding choice for your most demanding bulk cryogenic liquid applications. The cryogenic control valve is designed for liquid nitrogen, argon, oxygen, and natural gas services. Materials
Materials of Cryogenic Globe Valves, Forged steel, Class 800Lb

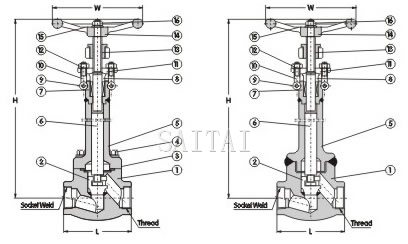

Structure of Cryogenic Globe Valves, Forged steel, Class 800Lb
NO. Part Name AS to ASTM SS to ASTM
Type A350 LF2 Type A350 LF3 Type A182 F304 Type A182 F316(L)
1 Body A350 LF2 A350 LF3 A182 F304(L) A182 F316(L)
2 Disc A276 410 A276 304(L) A276 304(L) A276 316(L)
3 Bonnet A350 LF2 A350 LF3 A182 F304(L) A182 F316(L)
4 Gasket Corrugated SS + graphite SS + PTFE
5 Bold Nut A193 B7 A193 B7 A193 B8 A193 B8M
6 Stem A182 F6 A182 F6 A182 F304(L) A182 F316(L)
7 Stem Packing Flexible graphite PTFE
8 Gland A276 420 A182 F304
9 Pin A276 420 A182 F304
10 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
11 Gland Flange A216 WCB A351 CF8
12 Gland Nut A194 2H A194 4 A194 8 A194 8M
13 Yoke Nut A276 410
14 Hand wheel A197
15 Nameplate SS
16 H.W. Nut A194 2H A194 4 A194 8 A194 8M
Suitable Temperature 40°C 101°C 196°C

ASME Pressure Classes 800 Lb
Bolted Bonnet-Threaded and Socket weld Ends-Dimensions (mm) and Weights (kg)

NPS 3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 79 92 111 120 120 172 200
H(OPEN) 333 337 370 480 410 474 546
W 100 100 125 160 160 180 200
Weights Bolted 5.2 7.2 10.9 13.5 15.2 19.8 29.0
Welded 4.8 6.5 9.5 11.5 13.1 17.5 26.8
Features

ASME Pressure Classes: 800 Lb
Sizes: 3/8, 1/2, 3/4, 1-1/4, 1-1/2, 2" ( DN 10, 15, 20, 25, 32, 40, 50 mm )
Ends: Threaded and Socket weld
Bonnet: Bolted, Welded
Materials: Stainless steel, Alloy steel
 Temperature: >-384°F (196 °C)

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park
