Forged Cryogenic Gate Valve

Features
Forged Cryogenic Gate Valves, Threaded and Socket weld Ends
Remy's forged cryogenic gate, globe valves are specially designed to handle the technical problems that arise in the production, transport and storage of liquefying gases such as Oxygen, Nitrogen, Argon, Natural Gas,. All basic design features of ENE forged cryogenic gate, globe valves outlined in this catalog are adapted to special service conditions at cryogenic temperatures. Body and bonnet: stainless steel (A182 F316L) forgings used for bodies and bonnets offer excellent impact strength, minimal heat loss and protection against corrosion. Materials
Materials of Forged Cryogenic Gate Valves
NO. Part Name AS to ASTM SS to ASTM
Type LF2 Type LF3 Type F304(L) Type F316(L)
1 Body A350 LF2 A350 LF3 A182 F304(L) A182 F316(L)
2 Seat Ring A276 420 A276 410 A276 304(L) A276 316(L)
3 Wedge A350 LF2 A350 LF3 A182 F304(L) A182 F316(L)
4 Gasket Corrugated SS + graphite SS + PTFE
5 Bonnet A350 LF2 A350 LF3 A182 F304(L) A182 F316(L)
6 Bonnet Bolt A193 B7 A193 B7 A193 B8 A193 B8M
7 Stem A182 F6 A182 F6 A182 F304(L) A182 F316(L)
8 Stem Packing Flexible Graphite PTFE
9 Pin A276 420 A276 304
10 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
11 Gland A276 410 A182 F304(L) A182 F316(L)
12 Gland Flange A105 A182 F11 A182 F304(L) A182 F316(L)
13 Gland Nut A194 2H A194 4 A194 8 A194 8M
14 Yoke Nut A276 420
15 Bearing Gasket A473 431
16 Nameplate SS
17 H.W. Lock Nut A194 2H A194 4 A194 8 A194 8M
18 Hand wheel A197
Suitable Temperature -40°C -101°C -196°C

ASME Pressure Classes 800 Lb-Forged Cryogenic

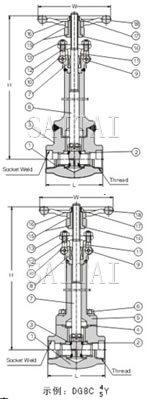

Bolted and Welded Bonnet-Threaded and Socket weld Ends- Dimensions (mm) and Weights (kg)

Forged Cryogenic Gate Valves, Threaded and Socket weld Ends
NPS 3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 79 92 111 120 120 140 178
H(OPEN) 330 333 360 407 475 475 551
W 100 100 125 160 160 180 200
Weights Bolted 5.2 7.1 9.4 13.5 15.0 17.8 28.0
Welded 4.8 6.4 8.7 12.2 13.4 15.2 26.0
Specifications

ASME Pressure Classes: 800 Lb
Sizes: 3/8, 1/2, 3/4, 1-1/4, 1-1/2, 2" ( DN 10, 15, 20, 25, 32, 40, 50 mm )
Ends: Threaded and Socket weld
Bonnet: Bolted, Welded
Materials: Stainless steel, Alloy steel
Temperature: >-384°F (196 °C)

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park
