Forged Steel Globe Valve

Summary Chinese valves manufacturers and exporters of forged stainless steel, alloy steel, carbon steel globe valves, forged cryogenic, pressure seal, Y pattern globe valves and so on. We have provided AutoCAD drawings, external drawing, installation drawing and design drawing, manufacturing standards, designs, sizes, dimensions, materials used in valve body and valve parts, test pressure, etc. Here to see our forged steel check valves manufacturing range. Please refer to our products. We also undertake custom designs and specifications. Please note this is a condensed catalog for reference only. The actual parameters are subject to products. For a complete version, contact Remy directly. Materials Materials of Forged Steel Gate Valves

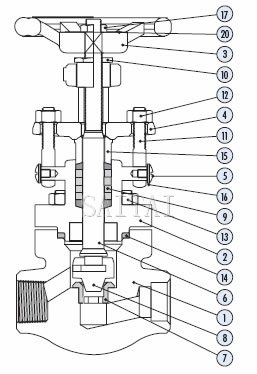

No. Part Material
1 Body A105, A182 F22, A182 F304(L), A182 F316(L)
2 Bonnet A105, A276 304, A276 304(L), A276 316(L)
3 Hand wheel A197
4 Gland Flange A216 WCB, A351 CF8
5 Eyebolt Screws A276 420, A276 304
6 Stem A182 F6, A182 F304, A182 F304(L), A182 F316(L)
7 Seat A276 420, A276 304, A276 304(L), A276 316(L)
8 Disc A276 420, A276 304, 276 304(L), A276 316(L)
9 Packing Flexible Graphite, PTFE
10 Yoke Nut A276 410
11 Eyebolts A193 B7, A193 B16, A193 B8, A193 B8M
12 Eyebolt Nuts A194 2H, A194 4, A194 8, A194 8M
13 Cap Screws A193 B7, A193 B16, A193 B8, A193 B8M
14 Gasket 304 SS Spiral Wound graphite, 316 SS Spiral Wound PTFE
15 Packing Gland Stainless Steel etc.
16 Lock Nut Washer Carbon Steel etc.
17 Hand wheel Nut A194 2H, A194 4, A194 8, A194 8M
20 Name Plate Stainless Steel etc.
