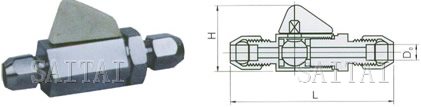

QY-1 ball valve for pneumatic line diagram:
QY-1 ball valve for pneumatic line is Applicable to:
Medium:Air,
Material:304SS, 316SS, 20#,
Connection: clamp connection
QY-1 ball valve for pneumatic line connecting dimensions:
| SPECIFICATION | Do | L | H | NOMINAL PRESSURE |
| DN3 | Φ6 | 86 | ~40 | =1MPa |
| DN6 | Φ8 | 90 | ~40 | =1MPa |
| DN10 | Φ10 | 95 | ~40 | =1MPa |
