GMJ11F/H-25 High Seal Completely Sampling Valve
GMJ11F/H-25 High Seal Completely Sampling Valve

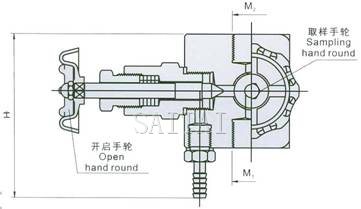

Structure of
GMJ11F/H-25 High Seal Completely Sampling Valve
GMJ11F/H-25 high seal completely sampling valve chief property and specification:
GMJ11F/H-25 high seal completely sampling valve Design Manafacfure According:
GB/T12224-1989,JB/T7747-1995, Link a form: inside screw link, Structure characteristic: The hard and soft double
seals completely a pair; Movable valve petal, The valve examines with experiment: GB/T13927-1992
GMJ11F/H-25 high seal completely sampling valve test standard Unit:MPa
| TESTITEM |
PRESSURE VALVE |
| Nominal Pressure |
25 |
| Shell Test |
37.5 |
| Test |
27.5 |
| Air Pressure Test |
0.9 |
| Suitable Temperature |
=250°C |
| Suitable Medium |
Water, Steam, Oil |
GMJ11F/H-25 high seal completely sampling valve materials for main parts:
| TYPE |
BODY |
TIE-IN |
VALVE HANDLE |
SCREW
CAP
|
PACKING |
| GMJ11F/H-250II |
20# |
20# |
2Cr13 |
20# |
Flexible Graphite + PTFE |
| GMJ11F/H-250PII |
304SS |
304SS |
304SS |
304SS |
GMJ11F/H-25 high seal completely sampling valve dimensions(mm):
| SPECIFICATION |
M1 |
M2 |
H |
| DN6 |
G1/2 |
M20×1.5 |
110 |
