Plug Valves With Single Or Double Flush

Plug Valves with Single or Double Flush

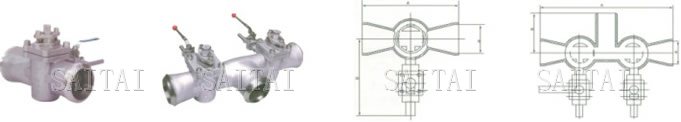

Schematic Diagram of Installation

DN(in)	150LB SINGLE LUSH
DN(in)	A	B	f
2	216	278	54.8
3	305	278	82.8
4	356	293	108.2
6	432	308	161.5
8	508	320	211.6
10	572	333	264.7

DN(in)	150LB DOUBLE LUSH
DN(in)	A	B	C	f
2	432	115	278	54.8
3	585	140	293	82.8
4	686	150	308	108.2
6	842	200	320	161.5
8	970	270	270	211.6
10	1144	350	350	264.7

DN(in)	300LB SINGLE LUSH
DN(in)	A	B	f
2	216	278	54.8
3	305	278	82.8
4	356	293	108.2
6	432	308	161.5
8	508	320	211.6
10	572	333	264.7

DN(in)	300LB DOUBLE FLUSH
DN(in)	A	B	C	f
2	432	115	278	54.8
3	585	140	293	82.8
4	686	150	308	108.2
6	842	200	320	161.5
8	970	270	270	211.6
10	1144	350	350	264.7
