Oversized Resilient Seated Gate Valves

Summary Oversized gate valve is made of high quality ductile cast iron or cast steel with high strength, light weight and precise dimensions. The disc is replaceable. And the valve is gear operated and can open or close the valve easily by one man, at the same time it can be with opening indicator according to the client's requirements, or be with electric or pneumatic actuator. It's sealing and anti-rust function is very good. And it is reliable with long life. It can be installed vertically or horizontally and used widely in the system such as feeding and draining, sewage treatment, construction, mining, metallurgy, electric power plant etc. Technical Parameters

Nominal pressure: 1.0-2.5MPa
Working temp.:0-120°C
Flanged end:GB/T17241.6 GB9113,ASME 16.5 etc.
Nominal diameter: 50-400mm
Service: water, oils, gas etc.
Inspection and test: GB 13927 API 598

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

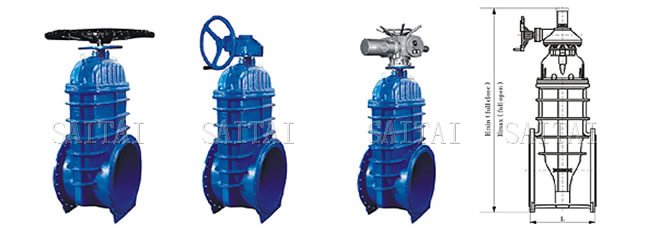

Oversized resilient seated gate valves
Oversized resilient seated gate valves
Materials
Serial no. part material
1 Body Grey cast iron, ductile cast iron, cast steel
2 Disc Ductile cast iron packed with rubber or EDPM outside
3 Bolt Carbonized treatment
4 Gasket Buna-N rubber or EPDM
5 Cover Grey cast iron, ductile cast iron, cast steel
6 Stem Stainless steel
7 O-ring Buna-N rubber
8 Thrust bearing Gun metals
9 Bolt Carbon steel or alloy
10 Gland ductile cast iron, cast steel
11 Dust proof gasket Buna-N rubber
12 Hand wheel Ductile iron
Dimensions
DN 500 600 700 800 900 1000 1200
L 457 508 660 720 780 840 960
H(min)(full close) 1480 1665 2200 2800 2800 3000 3000
H(max)(full open) 1650 1900 2350 2950 2950 3150 3150
H(ELECTRIC) the electric actuator according to the client's requirements
Oversized Resilient Seated Gate Valves Related Products

Above:Special Fire Signal Resilient Seated Gate Valve

Catalog:Resilient Seated Gate Valves
