Home > products > Pump > 球友会:Fire Pumps

30l/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

5L/S Series 球友会:10L/S Series 15L/S Series 球友会:20L/S Series 球友会:25L/S Series 球友会:30L/S Series
球友会:35L/S Series球友会:40/45 L/S Series 球友会:50/55 L/S Series 球友会:60/65 L/S Series 70/80 L/S Series

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC3.7/30-80 30 0.37 20.6 1500 66 2.0
XBC5.3/30-80 0.53 1800
XBC4.9/30-80 30 0.49 28 1500 66 2.0
XBC7.0/30-80 0.70 1800
XBC5.7/30-100 30 0.57 28 1500 66 2.0
XBC8.2/30-100 0.82 1800
XBC9.3/30-100 30 0.93 58.8 1500 66 2.0
XBC12.8/30-100 30 1.28 58.8 1500 66 2.0

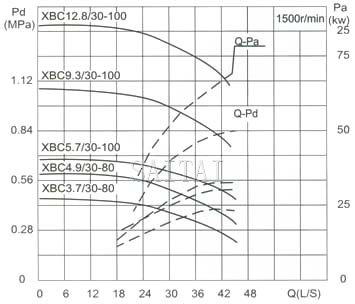

Capacity Drawing
Capacity:30 L/S Pressure:Pressure:0.37-1.28MPa
Structure Of 30l/S Xbc Type Diesed Engine Fire Pump
Structure Of 30l/S Xbc Type Diesed Engine Fire Pump

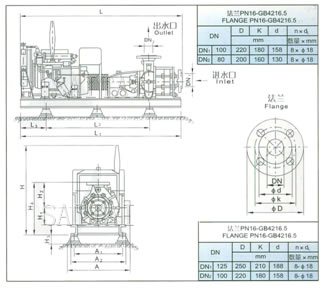

II 30l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC3.7/30-80
5.3		 200 325 87 625 900 1590 1385 965 180 445 505 - JGD3 4 510
XBC4.9/30-80
7.0		 200 325 87 625 900 1885 1675 1255 180 445 505 - JGD3 4 553
XBC5.7/30-100
8.2		 280 400 87 800 920 1803 1675 1025 300 45 505 - JGD3 4 583
XBC9.3/30-100 280 400 133 800 1205 2661 1870 1220 300 694 800 777 JGD3 4 1187
XBC12.8/30-100 280 400 133 800 1205 2791 2000 1350 300 694 800 777 JGD3 4 1261
