5l/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

球友会:5L/S Series 球友会:10L/S Series 15L/S Series 球友会:20L/S Series 球友会:25L/S Series 球友会:30L/S Series
球友会:35L/S Series球友会:40/45 L/S Series 50/55 L/S Series 球友会:60/65 L/S Series 球友会:70/80 L/S Series

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW 		n
Speed
(r/min) 		Efficiency
(%)
(NPSH)r
(m)
XBC1.9/5-50 5 0.19 2.2 1500 64 1.7
XBC2.9/5-50 5 0.29 4.41 1500 64 1.7
XBC3.8/5-50 5 0.38 4.41 1500 64 1.7
XBC4.8/5-50 5 0.48 8.8 1500 64 1.7
XBC5.8/5-50 5 0.58 8.8 1500 64 1.7
XBC6.8/5-50 5 0.68
0.98		 8.8 1500 64 1.7
XBC9.8/5-50 1800
XBC7.8/5-50 5 0.78 13.8 1500 64 1.7
XBC11.2/5-50 1.12 1800

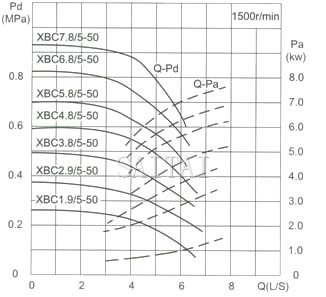

Capacity Drawing
Capacity:25 L/S Pressure:Pressure:0.31-0.92MPa
Structure Of 5l/S Xbc Type Diesed Engine Fire Pump
Structure Of 5l/S Xbc Type Diesed Engine Fire Pump

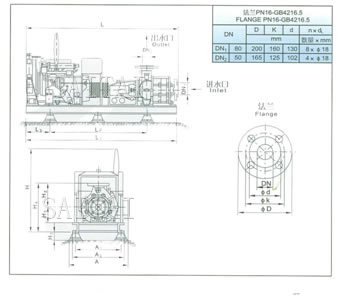

II 5l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC3.1/25-80
4.5		 200 325 87 625 900 1495 1290 870 180 445 505 - JGD3 4 447
XBC4.7/25-80
6.8		 200 325 87 625 900 1590 1385 965 180 445 505 - JGD3 4 510
XBC6.4/25-80
9.2		 200 325 87 625 900 1885 1675 1225 180 445 505 - JGD3 4 553
