35l/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

球友会:5L/S Series 球友会:10L/S Series 球友会:15L/S Series 球友会:20L/S Series 25L/S Series 30L/S Series
球友会:35L/S Series球友会:40/45 L/S Series 50/55 L/S Series 球友会:60/65 L/S Series 球友会:70/80 L/S Series

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC5.4/35-100 35 0.54 31.6 1500 66 2.0
XBC7.7/35-100 0.77 1800
XBC7.1/35-100 35 0.71 40.4 1500 66 2.0
XBC10.2/35-100 1.02 1800
XBC8.0/35-100 35 0.80 58.8 1500 66 2.0
XBC9.0/35-100 35 0.90 58.8 1500 66 2.0
XBC10.8/35-100 35 1.08 58.8 1500 66 2.0
XBC12.5/35-100 35 1.25 73.5 1500 66 2.0

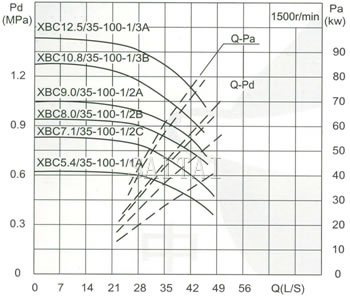

Capacity Drawing
Capacity:35 L/S Pressure:0.54-1.25MPa
Structure Of 35l/S Xbc Type Diesed Engine Fire Pump
Structure Of 35l/S Xbc Type Diesed Engine Fire Pump

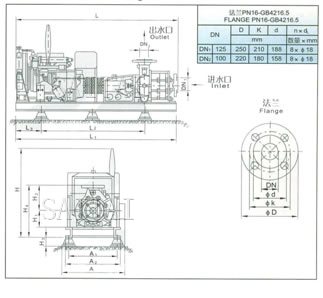

II 35l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC5.4/35-100
7.7		 280 400 133 800 920 1803 1675 1025 300 445 505 - JGD4 4 583
XBC7.1/35-100
10.2		 280 400 133 800 2040 2390 2530 1880 300 445 505 690 JGD4 4 827
XBC8.0/35-100 280 400 133 800 1205 2661 1870 1220 300 694 800 777 JGD4 4 1196
XBC9.0/35-100 280 400 133 800 1205 2661 1870 1220 300 694 800 777 JGD4 4 1196
XBC10.8/35-100 280 400 133 800 1205 2791 2000 1350 300 694 800 777 JGD4 4 1261
XBC12.5/35-100 280 400 133 800 1205 2791 2000 1350 300 694 800 777 JGD4 4 1261
